Early Nineteenth Century Oak Cased Rutherford Type Minimum Thermometer by Adie & Son Edinburgh

For sale, an early nineteenth century oak cased Rutherford type minimum thermometer by Adie & Son Edinburgh.

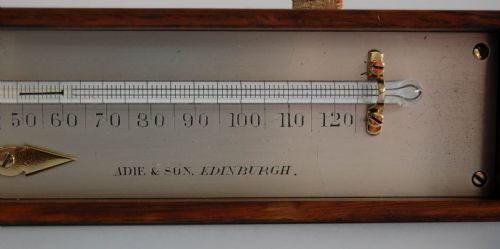

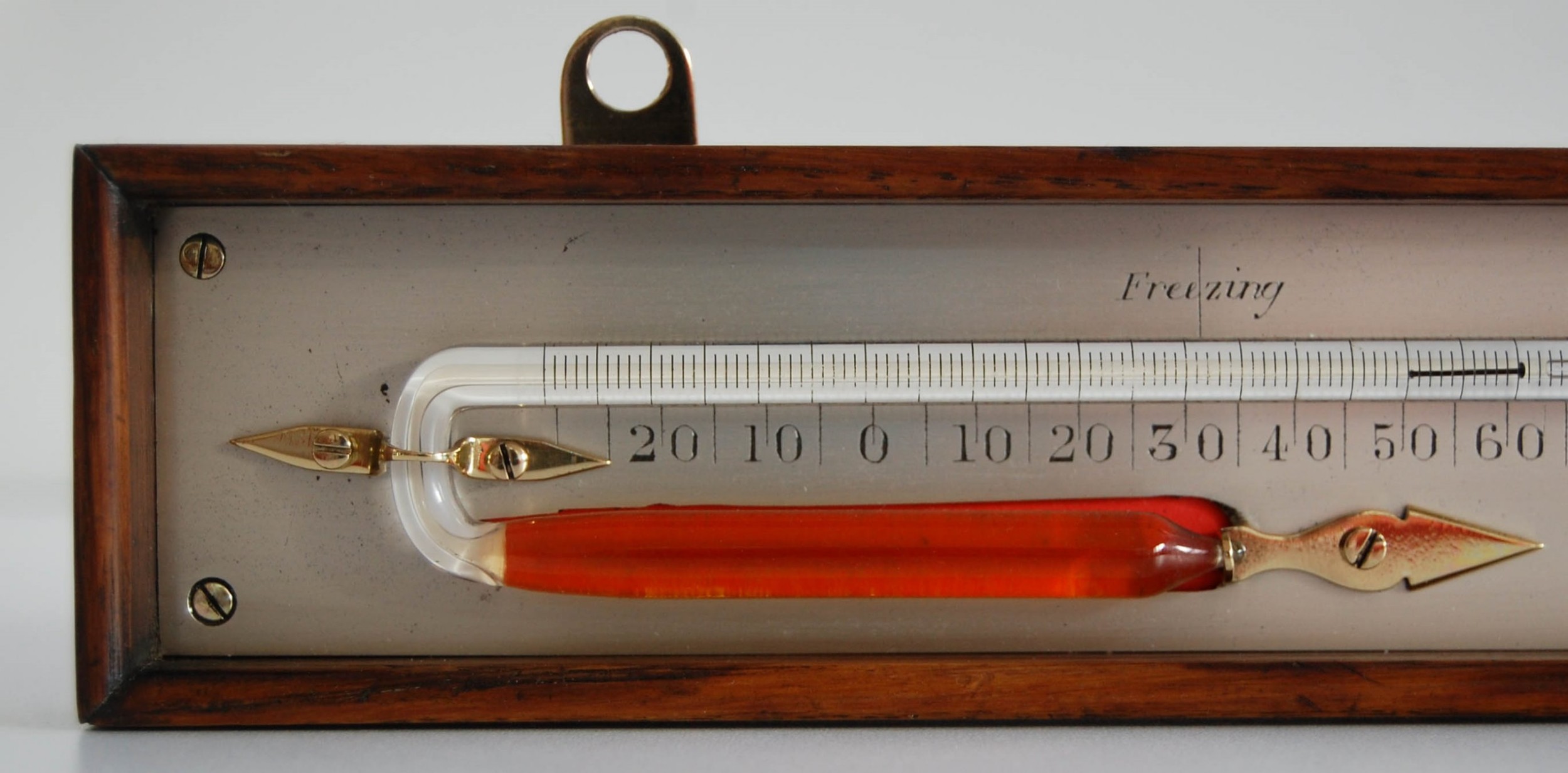

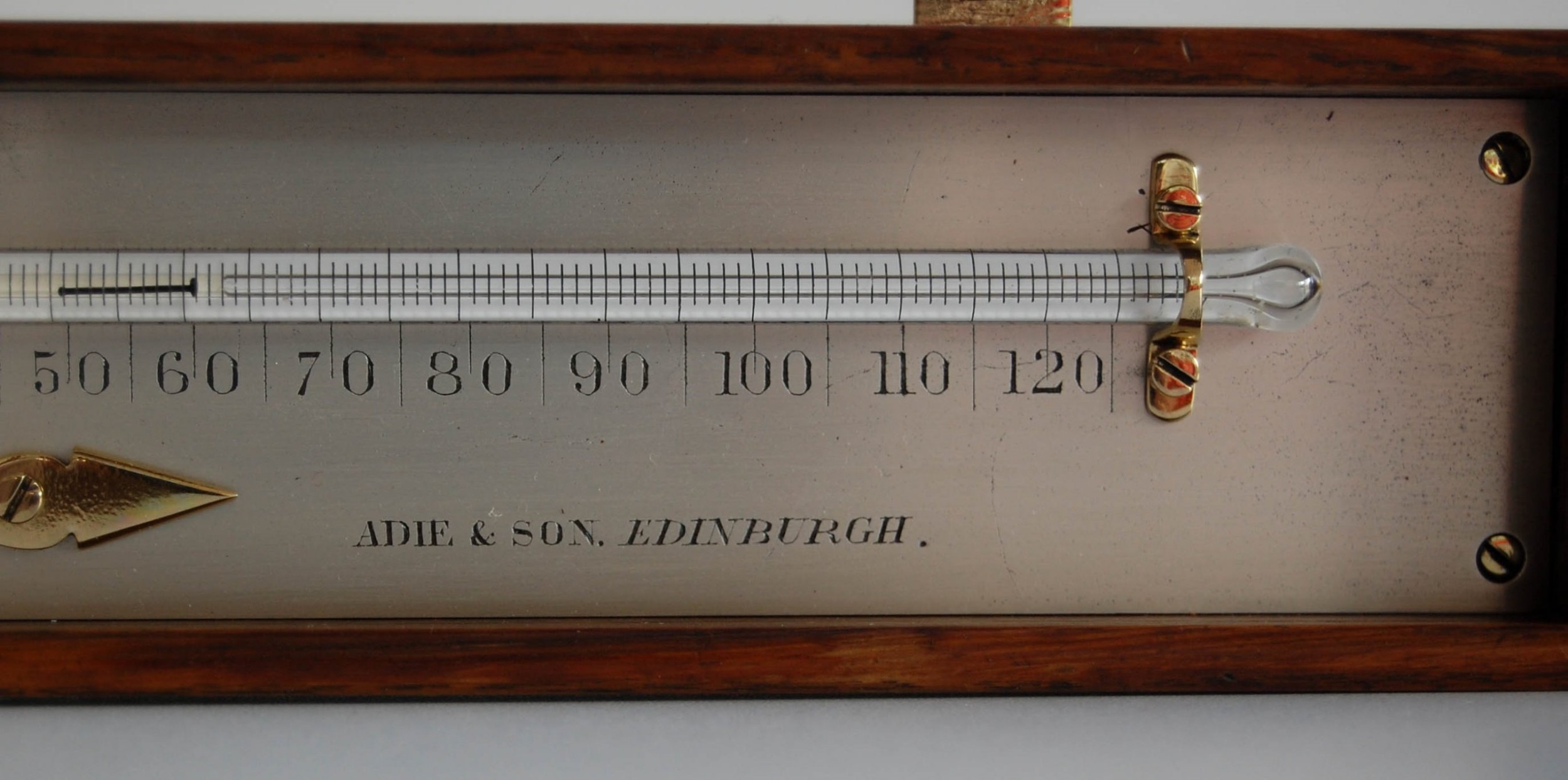

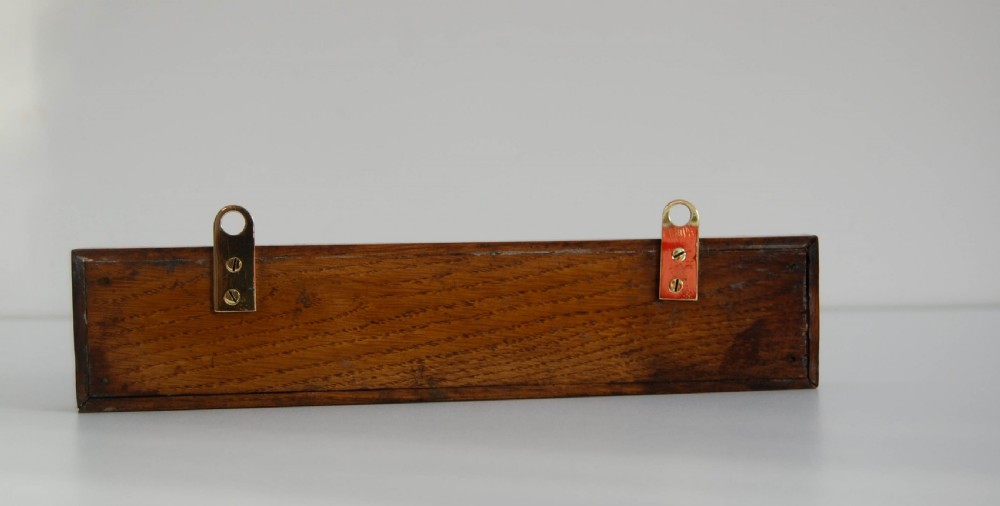

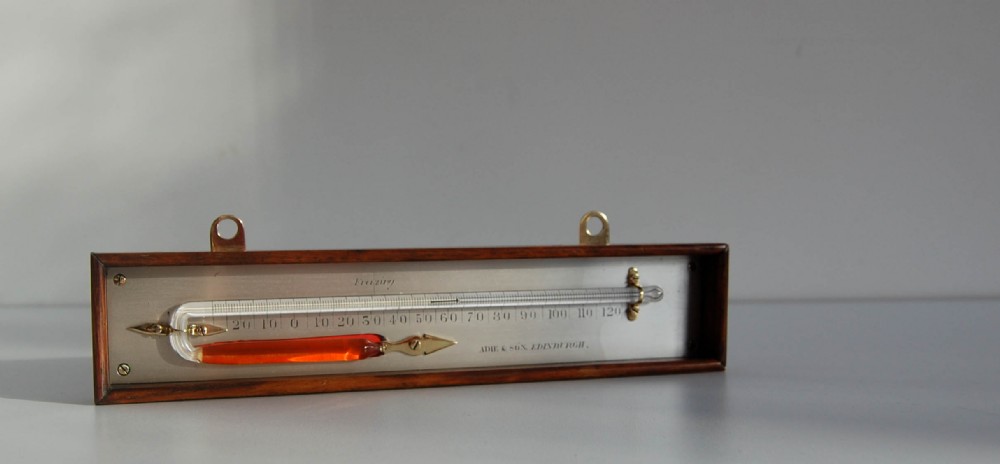

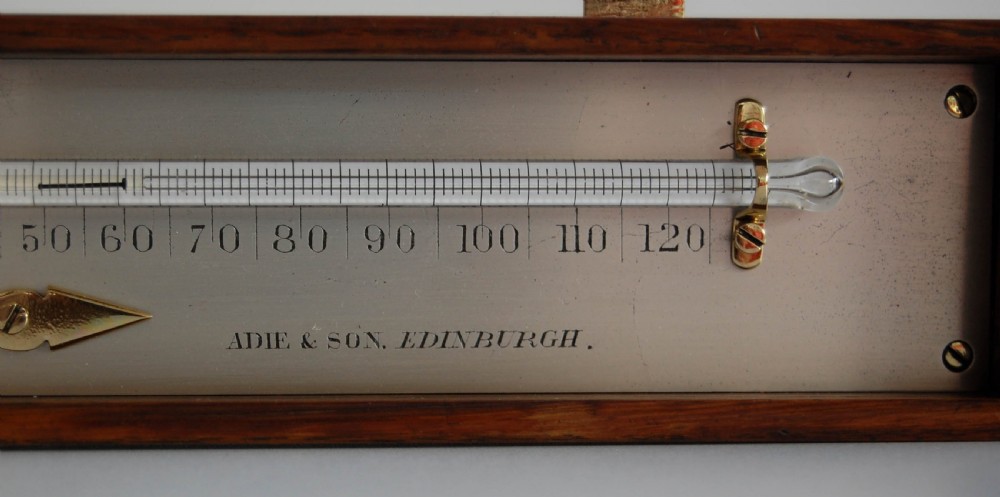

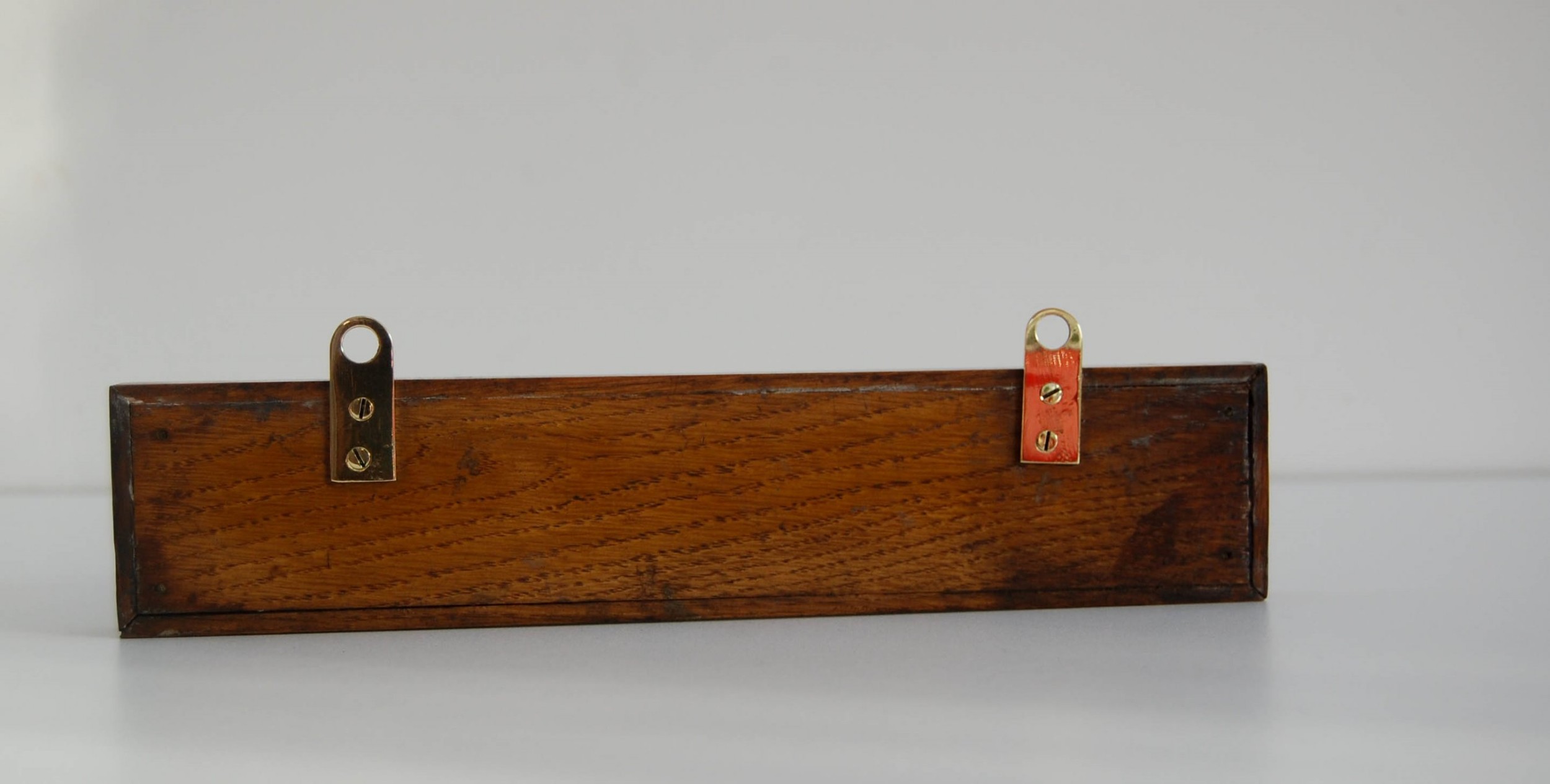

This rare surviving example is comprised of an open-fronted oak case with a silvered brass scale plate screwed to the inside back reading from -20 to 120 in Fahrenheit. The scale plate is engraved with “Fahrenheit” above the scale and includes the makers name, “Adie & Son, Edinburgh” to the base. The spirit filled thermometer is further divided into smaller graduations on the tube itself and aligns with the scale plate. As with Six’s combined max/min thermometers, this examples includes a small conical piece of metal which allows for the recording of the lowest temperature in a user defined period of time. The brass scale is cut out behind the thermometer bulb in order to avoid inaccurate readings due to the temperature of the metal and the void is filled with coloured paper to provide some colour to the clear spirit employed in the thermometer. Please note that the paper has been replaced but is chosen to mimic the colour of the original.

The separate maximum and minimum thermometer was introduced in this form by John Rutherford and was presented to the Royal Society of Edinburgh in 1790. An account of that description still exists and is provided below:

The following improvement on the construction of the thermometer, by which is fitted to mark the lowest or the highest point to which the fluid has attained in the absence of the observer, is due to John Rutherford, M.D. of Middle Baililish. This gentleman communicated it to me some time ago, and accompanied the description with one of his thermometers. The contrivance is so very simple and ingenious, that it well deserves to be made public. I therefore, by permission of the author, beg leave to lay an account of it before the Royal Society.

If it be required, that the thermometer should mark the lowest point to which the liquid has descended within any given time, a common spirit of wine thermometer must be provided, of a convenient size, with its point turned towards the bulb of the thermometer. This piece (the conical pointer) is about half an inch long, and of such diameter at the base, that it may move freely within the tube, yet nearly fill the calibre. It is to be allowed to move downwards till it be fully immersed in the spirit. After this has once been effected, it will be found, that it is not disposed to part again from the spirit; but if the thermometer be held vertically, with the bulb uppermost, it will immediately descend to the extremity of the column, but no farther: There it rests; and if by a diminution of heat the spirit contracts, it is drawn upwards at the extremity of the column, as this recedes towards the bulb. Now, let the thermometer be disposed, that its stem instead of being vertical shall be horizontal, (and such is the ordinary position of this thermometer) it may be readily imagined, that in this case, the conical piece shall equally; as before, follow any retraction of the column; but this should lengthen again, in consequence of an increase in temperature, the conical piece does not advance with it, but remaining fixed at the lowest point to which the column has descended, it allows the liquor to pass freely beyond it, as that again expands. Hence the point of the scale at which the conical piece is found to rest, denotes the lowest degree to which the liquor has sunk in the interval of the observation. To rectify the instrument for a fresh observation, nothing farther is requisite than to elevate the bulb of the thermometer, in order that the conical piece may sink by its proper gravity, to the extremity of the column.

The account goes on to explain the workings of the maximum thermometer which was ordinarily constructed by the use of a mercurial thermometer but worked on similar principles.

The history of the firm, Ad
